Concealed Drop Down Door Weather Seal dustproof For Wooden Door

Name: Concealed Drop Down Door Weather Seal dustproof For Wooden Door
Brand: BHMFT
Price: 1 USD

Wholesale Concealed Drop Down Door Weather Seal dustproof For Wooden Door from china suppliers

Brand Name : BHMFT

Model Number : BH-M003

Certification : CE

Place of Origin : China

MOQ : Negotiable

Price : EXW price US$ 4-10.5/ set

Payment Terms : T/T

Supply Ability : 2000 sets per week

Delivery Time : 7-15 days after receive the payment

Packaging Details : each one packed by a PE bag, 25 sets in a carton, for length 915mm, carton size: 103*20*10cm, weight is about 11 kgs

Main Materials : 6063 Alumium Alloy

Sealing strips : Soft Silicone strips

Fixed Part : Aluminium and Stainless Steel

Type : Concealed with side edge

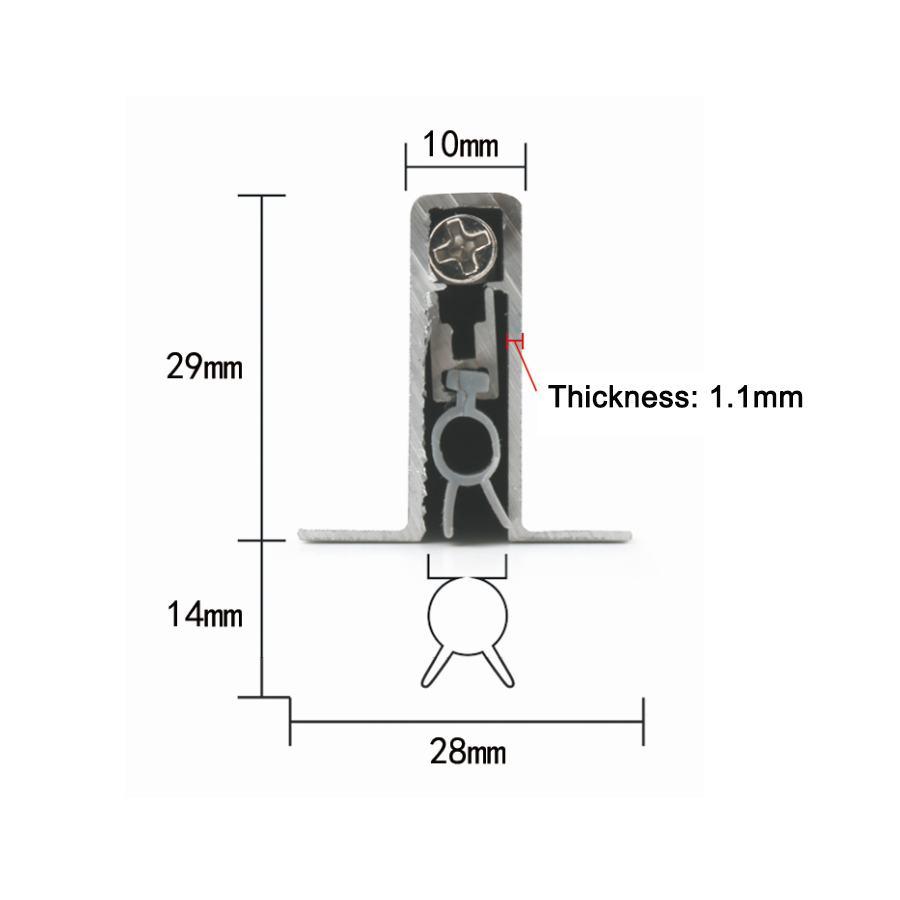

Size : 10*29-28mm

Length : can do 300-1600mm

Regular length : 800mm, 915mm, 1000mm, other length can do customized

Available Cut Length : 800mm - can cut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm

Contact Now

Auto Drop Down Automatic Door Bottom Seals Aluminium Alloy Concealed Weatherstrips For Wooden Door Or Metal Door

The automatic door bottom seal that is operated automatically by pressure against the door jamb on its adjustable strike (the copper bolt), when the door is closed it will be automatically drop down and then seals the gaps between the door bottom and floor.

Features:

Operated automatically by pressure against the door jamb on its adjustable strike (the copper bolt).
Adjust the adjustable strike (the round copper bolt) to achieve an optimum seal.
Fully morticed into a 15mm x 32mm groove into the bottom of single and double butt hinged timber and metal doors.
This item shape has the side edge, can fix it in the door bottom from the side edge.

Suitable for the wooden fire door, steel fire door, industry doors, hotel doors etc.
Prevent dust, hot and cold air, noisy sound, light from door bottom
High quality silicone seal with long life service.
6063 aluminum alloy body with gold color copper bolt.

Specifications:

Item No.:	BH-M003
Min/Max Gap:	3mm to 14mm
Finish:	Clear Anodised
Fixing:	Concealed Screw Fix, Fixing holes are pre-slotted
Seal:	Grey Silicon Rubber
Fixed Part:	Aluminium and Stainless Steel
Size can do:	300-1600mm
Regular length:	800mm, 915mm, 1000mm
Regular length can cut length:	800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm.
